4 Cores 3.0mm Stainless Steel Spiral Micro Armored Fiber Cable, White LSZH Jacket FTTH Rodent Resistant
Micro Armored Patch Cable, Flexible Armored Patch Lead Assembly
Micro Armored Fiber Cable, Spiral Armored Fiber Cable,
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
| Item | Unit | Description | Remark |
| Inner Jacket OD | mm | 1.0mm/ 0.25 mm | LSZH |
| Spiral armored tube | mm | OD: 1.7±0.1mm | Stainless Steel |
| Aramid yarn | | 1100D | |
| Attenuation (Max.) | dB/km | SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
| Outer jacket OD | mm | 3.0±0.1 | LSZH |
| Temperature | ℃ | LSZH: -30～80℃ |
| Tensile | N | Long-term 200, short-term 400 |
| Crush | N/10cm | Long-term 1000, short-term 2000 |
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),
making them adaptable to different networking and communications equipment.
The cable also can be produced with metallic braiding mesh.
Applications
- Widely used in FTTH access network
- Telecommunication Network
- Data communications Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
|
|

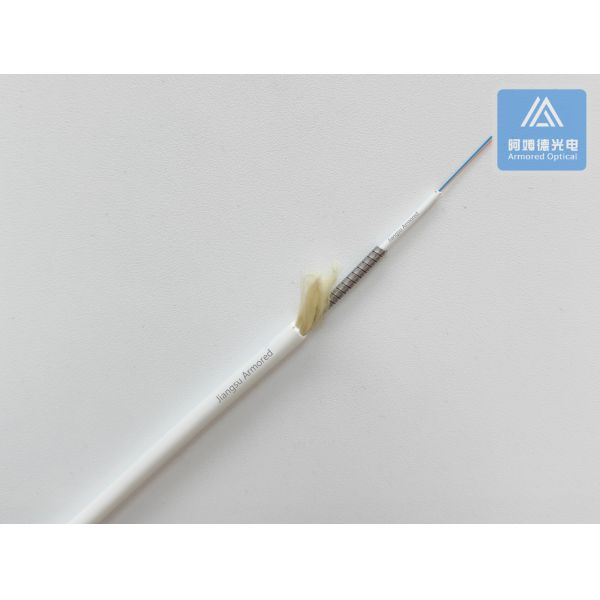

4 Cores Armored Fiber Optical Cable White LSZH 3.0mm Cable Assembly Images
|
